uhmwpe chute bunker truck bed liner/coal bin liner/hopper lining

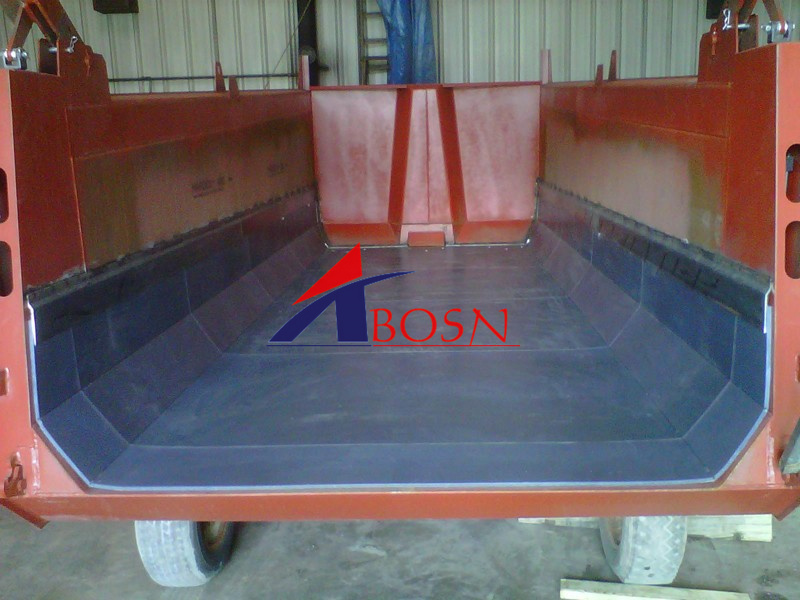

UHMWPE truck linings are non-stick , fast unloading, wear resistant and corrosion resistant, and are the best support for truckprotection.

UHMWPE plate has good wear resistance and self lubrication, and has a certain degree of rigidity, so it is very suitable to be used as a liner, especially the truck liner, bunker liner, which will help protect the truck body increase the service life of the body. Because of its self-lubricating property, it can also help unload the goods, and there is no need for additional manpower to dig out the goods in the body.

UHMWPE truck linings/coal linings can be manufactured to your specifications. Any size, color or logo is available.

We can provide the whole board, you could go back and cut it by ourselves, there will be no waste. Can also provide processed products, according to the drawings to produce a variety of shapes, drilling. Machining accuracy:+-0.5mm.

The size of whole board:

5040x1340mm

4730x1240mm

3050x1230mm

6050x1830mm

6050x2000mm

3050x1550mm

4550x2000mm

3050x3050mm

Thickness can be 8-100mm, for truck liner, 8-12mm thickness is enough.

With a very low friction co-efficient and zero water absorption, UHMWPE lining are widely used to eliminate caking, bridging and hanging up of a variety of bulk materials in application extending through steel and cement production, mining and power generation. In new applications the use of UHMWPE liners facilitates shallower chute and hoper angles providing greater design freedom whilst in existing installations the simulation of steeper angles through a low friction co-efficient is often the solution to plant blockage problems.
